SAF37減速機加電機重量：

SAF37減速機加0.12KW電機重量15.5KG，SAF37減速機加0.18KW電機重量16KG，SAF37減速機加0.25KW電機重量20KG，SAF37減速機加0.37KW電機重量20.5KG，SAF37減速機加0.55KW電機重量25KG，SAF37減速機加0.75KW電機重量26KG，SAF37減速機加1.1KW電機重量30KG。自鎖減速機

SAF37減速機加油量：可加齒輪潤滑油

SAF37減速機M4安裝形式加0.5L，SAF37減速機M3安裝形式加0.5L，SAF37減速機M2安裝形式加0.4L，SAF37減速機M1安裝形式加0.25L，SAF37減速機M5安裝形式加0.4L，SAF37減速機M6安裝形式加0.4L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

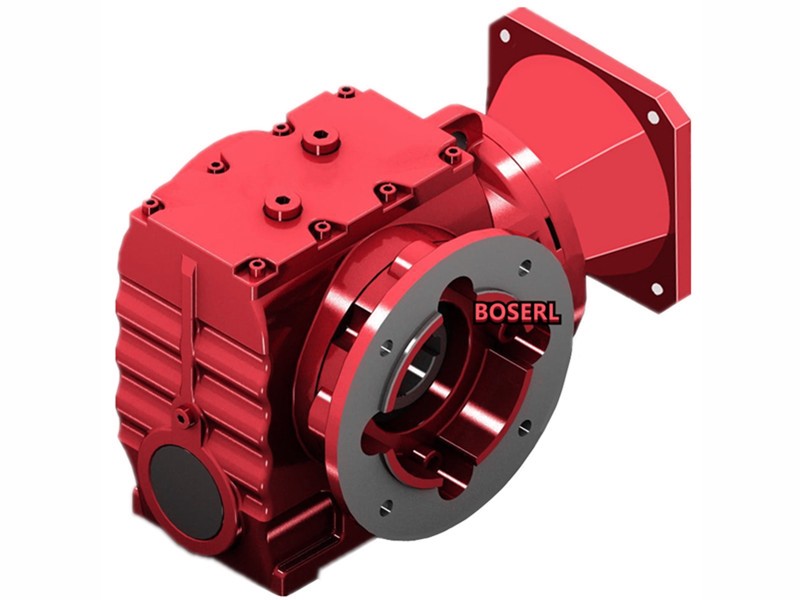

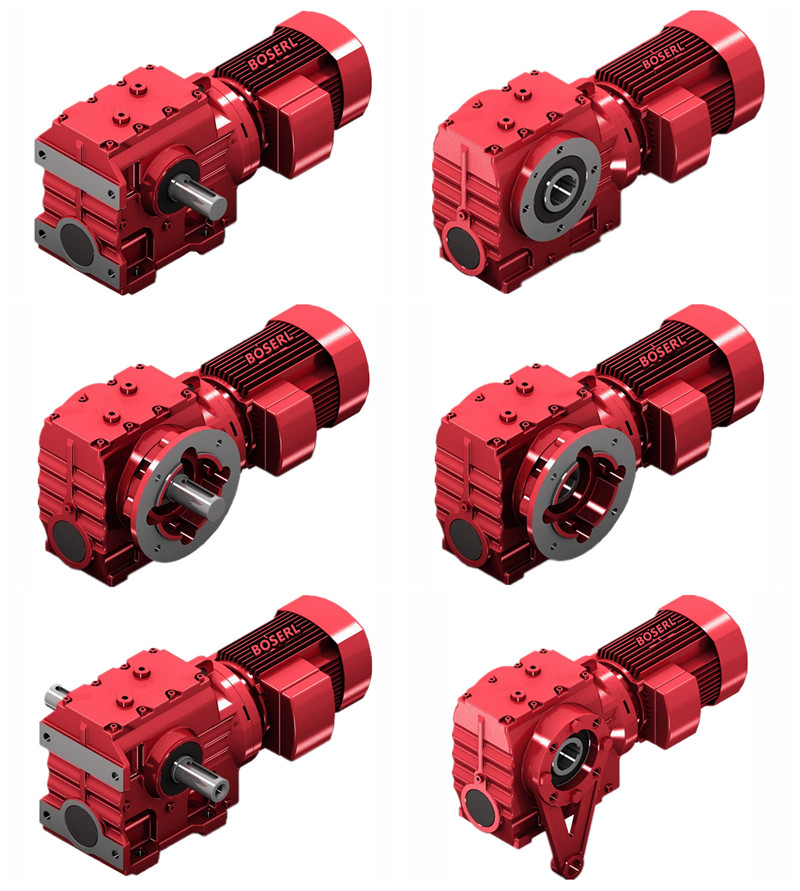

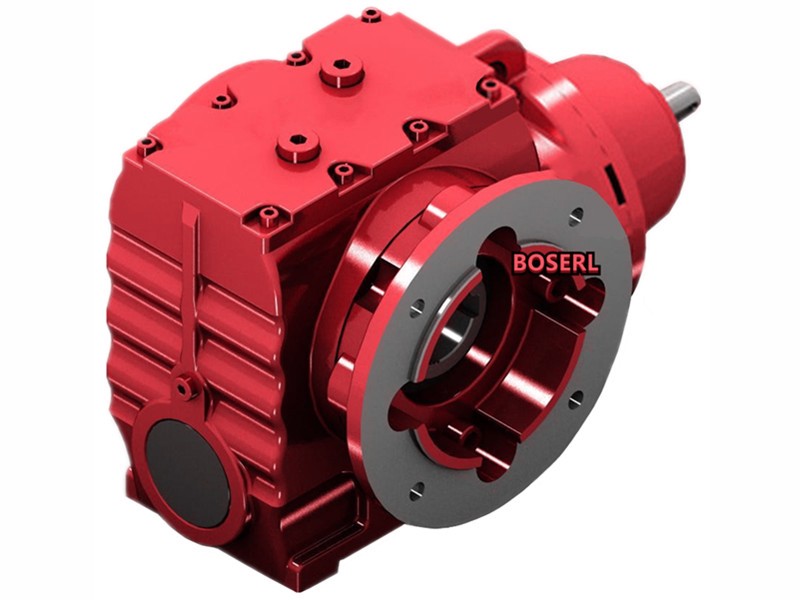

SAF37減速機實物圖：圖一為SAF37立式通孔斜齒輪蝸輪蝸桿減速電機，圖二S37加自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖三為SF37具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖四為SA37臥式中孔軸斜齒輪減速機。

SAF37減速機型號表示方法：

SAF37減速機型號結構SAF37-B0.37KW-4P-減速比-安裝形式-接線盒位置。

SAF37減速機性能參數表結構說明：Frame size代表基座規格，K代表服務系數，T扭力臂，E編碼器，HF手動釋放裝置加自鎖功能，TF電機熱保護裝置，SAF37、SF37、S37、SA37、HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。

SAF37減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

SAF37減速機參數：

SAF37減速機輸出扭矩92N.m，91N.m，88N.m，87N.m，86N.m，85N.m，84N.m，82N.m，81N.m，80N.m，79N.m，78N.m，76N.m，75N.m，74N.m，73N.m，52N.m，71N.m，50N.m，49N.m，48N.m，47N.m，46N.m，45N.m，43N.m，35N.m，34N.m，33N.m，32N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

SAF37減速機減速比：157.43比，144.40比，122.94比，106比，98.80比，86.36比，80.96比，71.44比，63.33比，55.93比，53.83比，51.30比，43.68比，37.66比，35.10比，30.68比，28.76比，25.38比，22.50比，19.89比，19.13比，18.24比，15.53比，13.39比，12.48比，10.91比，10.23比，9.02比，8.00比，6.80比，6.33比，5.38比，4.86比，3.97比。

SAF37減速機輸出轉數8.9轉減速機，9.7轉，11轉，13轉，14轉，16轉，17轉，20轉，22轉，25轉，26轉，27轉，32轉，37轉，40轉，46轉，49轉，55轉，62轉，70轉，73轉，77轉，90轉，105轉，112轉，128轉，137轉，155轉，175轉，206轉，221轉，260轉，288轉，353轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

SAF37減速機電機可加三相、直流、變頻、剎車、防爆、伺服、交流、單相電機SAF37加0.12KW，SAF37加0.18KW，SAF37加0.25KW，SAF37加0.37KW，SAF37加0.55KW，SAF37加0.75KW，SAF37加1.1KW。

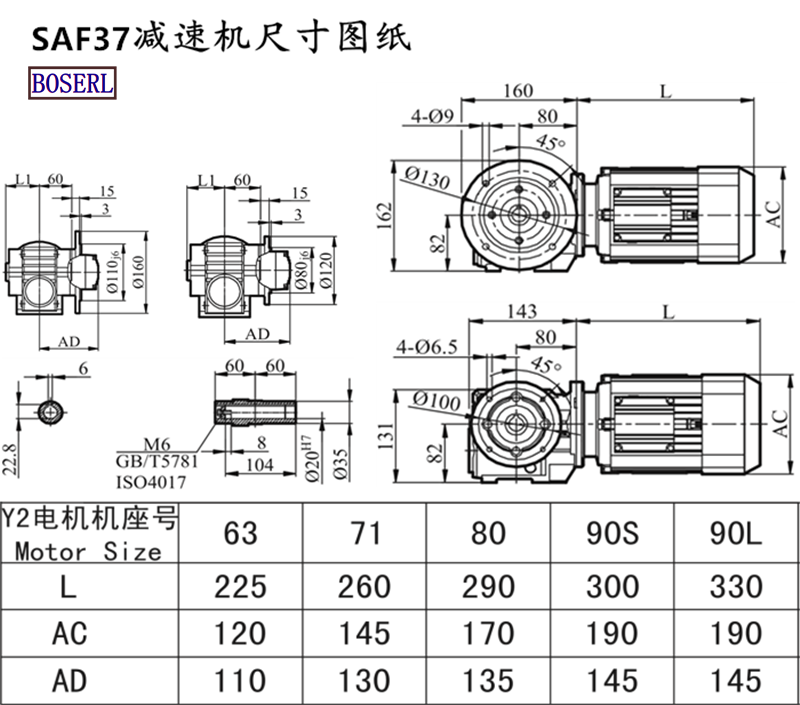

SAF37減速機外觀尺寸：輸出孔20+鍵Φ2.8（可定做），高131*寬138（帶輸出法蘭）*長143

SAF37減速機型號：SAF37AQA80,SAF37AQA100,SAF37AQA115,SAF37AQA140,SAF37AQA160,SAF37AQA190,SAF37AQH80,SAF37AQH100,SAF37AQH115,SAF37AQH140,SAF37AQH160,SAF37AQH190,JRTSAF37-Y0.12KW,JRTSAF37-Y0.18KW,JRTSAF37-Y0.25KW,JRTSAF37-Y0.AF37KW,JRTSAF37-Y0.55KW,JRTSAF37-Y0.75KW,JRTSAF37-Y1.1KW,JRTSAF37-Y1.5KW,JRTSAF37-Y63M4,JRTSAF37-Y71M4,JRTSAF37-Y80M4,JRTSAF37-Y90M4,JRTSAF37-YEJ63M4,JRTSAF37-YEJ71M4,JRTSAF37-YEJ80M4,JRTSAF37-YEJ90M4,JRTSAF37-YS63M4,JRTSAF37-YS71M4,JRTSAF37-YS80M4,JRTSAF37-YS90M4,JRTSAF37-YVP63M4,JRTSAF37-YVP71M4,JRTSAF37-YVP80M4,JRTSAF37-YVP90M4,JRTSAF37-YVPEJ63M4,JRTSAF37-YVPEJ71M4,JRTSAF37-YVPEJ80M4,JRTSAF37-YVPEJ90M4,EWSAF37-Y0.12KW,EWSAF37-Y0.18KW,EWSAF37-Y0.25KW,EWSAF37-Y0.AF37KW,EWSAF37-Y0.55KW,EWSAF37-Y0.75KW,EWSAF37-Y1.1KW,EWSAF37-Y1.5KW,EWSAF37-Y63M4,EWSAF37-Y71M4,EWSAF37-Y80M4,EWSAF37-Y90M4,EWSAF37-YEJ63M4,EWSAF37-YEJ71M4,EWSAF37-YEJ80M4,EWSAF37-YEJ90M4,EWSAF37-YS63M4,EWSAF37-YS71M4,EWSAF37-YS80M4,EWSAF37-YS90M4,EWSAF37-YVP63M4,EWSAF37-YVP71M4,EWSAF37-YVP80M4,EWSAF37-YVP90M4,EWSAF37-YVPEJ63M4,EWSAF37-YVPEJ71M4,EWSAF37-YVPEJ80M4,EWSAF37-YVPEJ90M4,SLSAF37-Y0.12KW,SLSAF37-Y0.18KW,SLSAF37-Y0.25KW,SLSAF37-Y0.AF37KW,SLSAF37-Y0.55KW,SLSAF37-Y0.75KW,SLSAF37-Y1.1KW,SLSAF37-Y1.5KW,SLSAF37-Y63M4,SLSAF37-Y71M4,SLSAF37-Y80M4,SLSAF37-Y90M4,SLSAF37-YEJ63M4,SLSAF37-YEJ71M4,SLSAF37-YEJ80M4,SLSAF37-YEJ90M4,SLSAF37-YS63M4,SLSAF37-YS71M4,SLSAF37-YS80M4,SLSAF37-YS90M4,SLSAF37-YVP63M4,SLSAF37-YVP71M4,SLSAF37-YVP80M4,SLSAF37-YVP90M4,SLSAF37-YVPEJ63M4,SLSAF37-YVPEJ71M4,SLSAF37-YVPEJ80M4,SLSAF37-YVPEJ90M4,DSZSAF37-Y0.12KW,DSZSAF37-Y0.18KW,DSZSAF37-Y0.25KW,DSZSAF37-Y0.AF37KW,DSZSAF37-Y0.55KW,DSZSAF37-Y0.75KW,DSZSAF37-Y1.1KW,DSZSAF37-Y1.5KW,DSZSAF37-Y63M4,DSZSAF37-Y71M4,DSZSAF37-Y80M4,DSZSAF37-Y90M4,DSZSAF37-YEJ63M4,DSZSAF37-YEJ71M4,DSZSAF37-YEJ80M4,DSZSAF37-YEJ90M4,DSZSAF37-YS63M4,DSZSAF37-YS71M4,DSZSAF37-YS80M4,DSZSAF37-YS90M4,DSZSAF37-YVP63M4,DSZSAF37-YVP71M4,DSZSAF37-YVP80M4,DSZSAF37-YVP90M4,DSZSAF37-YVPEJ63M4,DSZSAF37-YVPEJ71M4,DSZSAF37-YVPEJ80M4,DSZSAF37-YVPEJ90M4,BSAF37-Y0.12KW,BSAF37-Y0.18KW,BSAF37-Y0.25KW,BSAF37-Y0.AF37KW,BSAF37-Y0.55KW,BSAF37-Y0.75KW,BSAF37-Y1.1KW,BSAF37-Y1.5KW,BSAF37-Y63M4,BSAF37-Y71M4,BSAF37-Y80M4,BSAF37-Y90M4,BSAF37-YEJ63M4,BSAF37-YEJ71M4,BSAF37-YEJ80M4,BSAF37-YEJ90M4,BSAF37-YS63M4,BSAF37-YS71M4,BSAF37-YS80M4,BSAF37-YS90M4,BSAF37-YVP63M4,BSAF37-YVP71M4,BSAF37-YVP80M4,BSAF37-YVP90M4,BSAF37-YVPEJ63M4,BSAF37-YVPEJ71M4,BSAF37-YVPEJ80M4,BSAF37-YVPEJ90M4,GSAF37-Y0.12KW,GSAF37-Y0.18KW,GSAF37-Y0.25KW,GSAF37-Y0.AF37KW,GSAF37-Y0.55KW,GSAF37-Y0.75KW,GSAF37-Y1.1KW,GSAF37-Y1.5KW,GSAF37-Y63M4,GSAF37-Y71M4,GSAF37-Y80M4,GSAF37-Y90M4,GSAF37-YEJ63M4,GSAF37-YEJ71M4,GSAF37-YEJ80M4,GSAF37-YEJ90M4,GSAF37-YS63M4,GSAF37-YS71M4,GSAF37-YS80M4,GSAF37-YS90M4,GSAF37-YVP63M4,GSAF37-YVP71M4,GSAF37-YVP80M4,GSAF37-YVP90M4,GSAF37-YVPEJ63M4,GSAF37-YVPEJ71M4,GSAF37-YVPEJ80M4,GSAF37-YVPEJ90M4,SCAF37-Y0.12KW,SCAF37-Y0.18KW,SCAF37-Y0.25KW,SCAF37-Y0.AF37KW,SCAF37-Y0.55KW,SCAF37-Y0.75KW,SCAF37-Y1.1KW,SCAF37-Y1.5KW,SCAF37-Y63M4,SCAF37-Y71M4,SCAF37-Y80M4,SCAF37-Y90M4,SCAF37-YEJ63M4,SCAF37-YEJ71M4,SCAF37-YEJ80M4,SCAF37-YEJ90M4,SCAF37-YS63M4,SCAF37-YS71M4,SCAF37-YS80M4,SCAF37-YS90M4,SCAF37-YVP63M4,SCAF37-YVP71M4,SCAF37-YVP80M4,SCAF37-YVP90M4,SCAF37-YVPEJ63M4,SCAF37-YVPEJ71M4,SCAF37-YVPEJ80M4,SCAF37-YVPEJ90M4,MTNAF37-Y0.12KW,MTNAF37-Y0.18KW,MTNAF37-Y0.25KW,MTNAF37-Y0.AF37KW,MTNAF37-Y0.55KW,MTNAF37-Y0.75KW,MTNAF37-Y1.1KW,MTNAF37-Y1.5KW,MTNAF37-Y63M4,MTNAF37-Y71M4,MTNAF37-Y80M4,MTNAF37-Y90M4,MTNAF37-YEJ63M4,MTNAF37-YEJ71M4,MTNAF37-YEJ80M4,MTNAF37-YEJ90M4,MTNAF37-YS63M4,MTNAF37-YS71M4,MTNAF37-YS80M4,MTNAF37-YS90M4,MTNAF37-YVP63M4,MTNAF37-YVP71M4,MTNAF37-YVP80M4,MTNAF37-YVP90M4,MTNAF37-YVPEJ63M4,MTNAF37-YVPEJ71M4,MTNAF37-YVPEJ80M4,MTNAF37-YVPEJ90M4,WXSAF37-WSS0.12KW,WXSAF37-WSS0.18KW,WXSAF37-WSS0.25KW,WXSAF37-WSS0.AF37KW,WXSAF37-WSS0.55KW,WXSAF37-WSS0.75KW,WXSAF37-WSS1.1KW,WXSAF37-WSS1.5KW,WXSAF37-WSS63M4,WXSAF37-WSS71M4,WXSAF37-WSS80M4,WXSAF37-WSS90M4,WXSAF37-WSSB63M4,WXSAF37-WSSB71M4,WXSAF37-WSSB80M4,WXSAF37-WSSB90M4,WXSAF37-WSSVP63M4,WXSAF37-WSSVP71M4,WXSAF37-WSSVP80M4,WXSAF37-WSSVP90M4,WXSAF37-WSSVPB63M4,WXSAF37-WSSVPB71M4,WXSAF37-WSSVPB80M4,WXSAF37-WSSVPB90M4。伺服電機渦輪渦桿減速機

SAF37減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.zzhhdz.com/product/list-safxiliejiansuji-cn.html

推薦類似型號：S37減速機
