R47減速機重量：R47減速機重量10Kg，R47減速機配電機重量分別如下

R47減速機配0.12KW電機重量15.5Kg,R47減速機配0.18KW電機重量16Kg,R47減速機配0.25KW電機重量20Kg,R47減速機配0.37KW電機重量20.5Kg,R47減速機配0.55KW電機重量25Kg,R47減速機配0.75KW電機重量26Kg,R47減速機配1.1KW電機重量30Kg,R47減速機配1.5KW電機重量33Kg,R47減速機配2.2KW電機重量42Kg,R47減速機配3KW電機重量45Kg,R47減速機配4KW電機重量56Kg,R47減速機配5.5KW電機重量70Kg。

R47減速機加油量：可加礦物油

規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R47減速機M1安裝加0.7/1.5升，R47減速機M2安裝加1.6升，R47減速機M3安裝加1.5升，R47減速機M4安裝加1.65升，R47減速機M5安裝加1.5升，R47減速機M6安裝加1.5升。

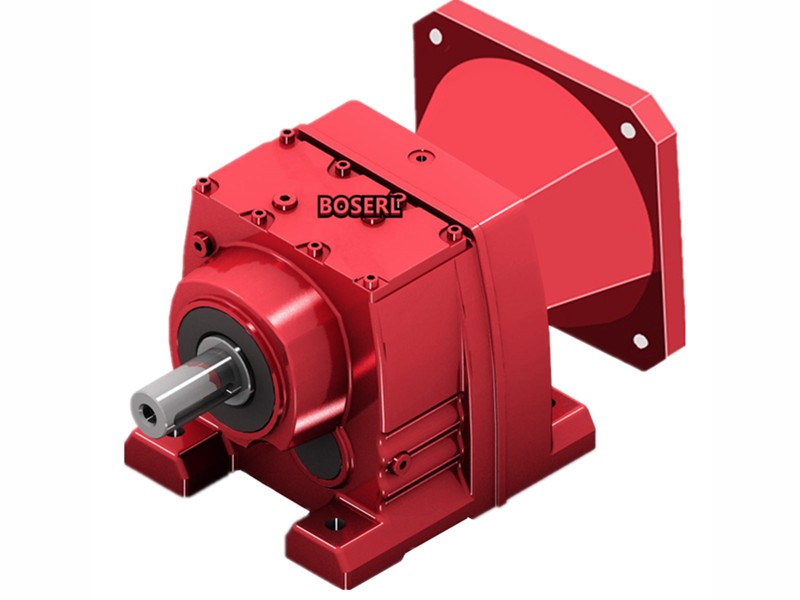

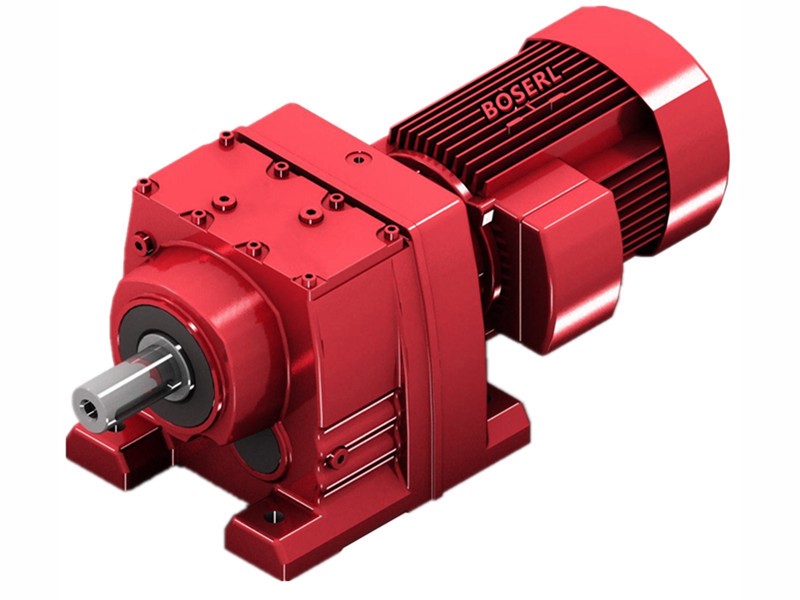

R47減速機實物圖：圖一為R47底腳安裝斜齒輪減速機，圖二RF47法蘭立式安裝斜齒輪減速機，圖三為RX系列減速機不同心臥式底腳安裝，圖四為RXF系列減速機不同心立式法蘭安裝。

R47減速機型號表示方法：

R47減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入配置。

R47減速機型號結構R47-B4KW-4P-減速比-安裝方式-接線盒位置。

R47減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

R47減速機結構圖：R系列減速機

R47減速機參數：齒輪減速機

R47減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R47配0.18KW,R47配0.25KW,R47配0.37KW,R47配0.55KW,R47配0.75KW,R47配1.1KW,R47配1.5KW,R47配2.2KW,R47配3KW,R47配4KW,R47配5.5KW。

R47減速機減速比3.83比,4.34比,4.85比,5.64比,6比,6.96比,7.76比,8.01比,9.07比,10.15比,11.79比,12.54比,14.56比,16.22比,17.89比,19.27比,21.81比,23.28比,23.59比,26.7比,26.74比,29.88比,31.12比,33.79比,34.73比,36.93比,42.87比,47.75比,52.69比,56.73比,64.21比,68.54比,76.23比,84.9比,93.68比,100.86比,114.17比,121.87比,139.99比,162.94比,176.88比。

R47減速機輸出轉速7.9轉,8.6轉,10轉,11轉,12轉,14轉,15轉,16轉,18轉,20轉,22轉,25轉,27轉,29轉,33轉,38轉,40轉,41轉,45轉,47轉,52轉,52轉,59轉,60轉,64轉,73轉,78轉,86轉,96轉,112轉,119轉,138轉,154轉,175轉,180轉,201轉,233轉,248轉,289轉,323轉,366轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R47減速機負載扭矩144N.m,146N.m,155N.m,156N.m,159N.m,163N.m,205N.m,220N.m,230N.m,240N.m,245N.m,250N.m,265N.m,275N.m,290N.m,295N.m,300N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

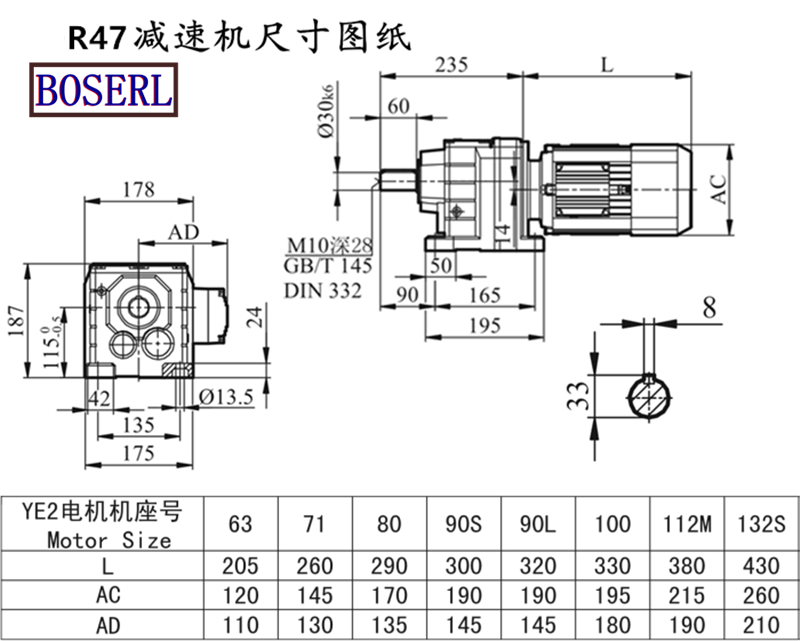

R47減速機尺寸圖紙：高187*寬175*長235（帶輸出軸）

R47減速機型號:

R47AQA80,R47AQA100,R47AQA115,R47AQA140,R47AQA160,R47AQA190,R47AQH80,R47AQH100,R47AQH115,R47AQH140,R47AQH160,R47AQH190,JRTR47-Y0.12KW,JRTR47-Y0.18KW,JRTR47-Y0.25KW,JRTR47-Y0.37KW,JRTR47-Y0.55KW,JRTR47-Y0.75KW,JRTR47-Y1.1KW,JRTR47-Y1.5KW,JRTR47-Y100M4,JRTR47-Y112M4,JRTR47-Y132M4,JRTR47-Y2.2KW,JRTR47-Y3KW,JRTR47-Y4KW,JRTR47-Y5.5KW,JRTR47-Y63M4,JRTR47-Y7.5KW,JRTR47-Y71M4,JRTR47-Y80M4,JRTR47-Y90M4,JRTR47-YEJ100M4,JRTR47-YEJ112M4,JRTR47-YEJ132M4,JRTR47-YEJ63M4,JRTR47-YEJ71M4,JRTR47-YEJ80M4,JRTR47-YEJ90M4,JRTR47-YS100M4,JRTR47-YS112M4,JRTR47-YS132M4,JRTR47-YS63M4,JRTR47-YS71M4,JRTR47-YS80M4,JRTR47-YS90M4,JRTR47-YVP100M4,JRTR47-YVP112M4,JRTR47-YVP132M4,JRTR47-YVP63M4,JRTR47-YVP71M4,JRTR47-YVP80M4,JRTR47-YVP90M4,JRTR47-YVPEJ100M4,JRTR47-YVPEJ112M4,JRTR47-YVPEJ132M4,JRTR47-YVPEJ63M4,JRTR47-YVPEJ71M4,JRTR47-YVPEJ80M4,JRTR47-YVPEJ90M4,EWR47-Y0.12KW,EWR47-Y0.18KW,EWR47-Y0.25KW,EWR47-Y0.37KW,EWR47-Y0.55KW,EWR47-Y0.75KW,EWR47-Y1.1KW,EWR47-Y1.5KW,EWR47-Y100M4,EWR47-Y112M4,EWR47-Y132M4,EWR47-Y2.2KW,EWR47-Y3KW,EWR47-Y4KW,EWR47-Y5.5KW,EWR47-Y63M4,EWR47-Y7.5KW,EWR47-Y71M4,EWR47-Y80M4,EWR47-Y90M4,EWR47-YEJ100M4,EWR47-YEJ112M4,EWR47-YEJ132M4,EWR47-YEJ63M4,EWR47-YEJ71M4,EWR47-YEJ80M4,EWR47-YEJ90M4,EWR47-YS100M4,EWR47-YS112M4,EWR47-YS132M4,EWR47-YS63M4,EWR47-YS71M4,EWR47-YS80M4,EWR47-YS90M4,EWR47-YVP100M4,EWR47-YVP112M4,EWR47-YVP132M4,EWR47-YVP63M4,EWR47-YVP71M4,EWR47-YVP80M4,EWR47-YVP90M4,EWR47-YVPEJ100M4,EWR47-YVPEJ112M4,EWR47-YVPEJ132M4,EWR47-YVPEJ63M4,EWR47-YVPEJ71M4,EWR47-YVPEJ80M4,EWR47-YVPEJ90M4,SLR47-Y0.12KW,SLR47-Y0.18KW,SLR47-Y0.25KW,SLR47-Y0.37KW,SLR47-Y0.55KW,SLR47-Y0.75KW,SLR47-Y1.1KW,SLR47-Y1.5KW,SLR47-Y100M4,SLR47-Y112M4,SLR47-Y132M4,SLR47-Y2.2KW,SLR47-Y3KW,SLR47-Y4KW,SLR47-Y5.5KW,SLR47-Y63M4,SLR47-Y7.5KW,SLR47-Y71M4,SLR47-Y80M4,SLR47-Y90M4,SLR47-YEJ100M4,SLR47-YEJ112M4,SLR47-YEJ132M4,SLR47-YEJ63M4,SLR47-YEJ71M4,SLR47-YEJ80M4,SLR47-YEJ90M4,SLR47-YS100M4,SLR47-YS112M4,SLR47-YS132M4,SLR47-YS63M4,SLR47-YS71M4,SLR47-YS80M4,SLR47-YS90M4,SLR47-YVP100M4,SLR47-YVP112M4,SLR47-YVP132M4,SLR47-YVP63M4,SLR47-YVP71M4,SLR47-YVP80M4,SLR47-YVP90M4,SLR47-YVPEJ100M4,SLR47-YVPEJ112M4,SLR47-YVPEJ132M4,SLR47-YVPEJ63M4,SLR47-YVPEJ71M4,SLR47-YVPEJ80M4,SLR47-YVPEJ90M4,DSZR47-Y0.12KW,DSZR47-Y0.18KW,DSZR47-Y0.25KW,DSZR47-Y0.37KW,DSZR47-Y0.55KW,DSZR47-Y0.75KW,DSZR47-Y1.1KW,DSZR47-Y1.5KW,DSZR47-Y100M4,DSZR47-Y112M4,DSZR47-Y132M4,DSZR47-Y2.2KW,DSZR47-Y3KW,DSZR47-Y4KW,DSZR47-Y5.5KW,DSZR47-Y63M4,DSZR47-Y7.5KW,DSZR47-Y71M4,DSZR47-Y80M4,DSZR47-Y90M4,DSZR47-YEJ100M4,DSZR47-YEJ112M4,DSZR47-YEJ132M4,DSZR47-YEJ63M4,DSZR47-YEJ71M4,DSZR47-YEJ80M4,DSZR47-YEJ90M4,DSZR47-YS100M4,DSZR47-YS112M4,DSZR47-YS132M4,DSZR47-YS63M4,DSZR47-YS71M4,DSZR47-YS80M4,DSZR47-YS90M4,DSZR47-YVP100M4,DSZR47-YVP112M4,DSZR47-YVP132M4,DSZR47-YVP63M4,DSZR47-YVP71M4,DSZR47-YVP80M4,DSZR47-YVP90M4,DSZR47-YVPEJ100M4,DSZR47-YVPEJ112M4,DSZR47-YVPEJ132M4,DSZR47-YVPEJ63M4,DSZR47-YVPEJ71M4,DSZR47-YVPEJ80M4,DSZR47-YVPEJ90M4,BR47-Y0.12KW,BR47-Y0.18KW,BR47-Y0.25KW,BR47-Y0.37KW,BR47-Y0.55KW,BR47-Y0.75KW,BR47-Y1.1KW,BR47-Y1.5KW,BR47-Y100M4,BR47-Y112M4,BR47-Y132M4,BR47-Y2.2KW,BR47-Y3KW,BR47-Y4KW,BR47-Y5.5KW,BR47-Y63M4,BR47-Y7.5KW,BR47-Y71M4,BR47-Y80M4,BR47-Y90M4,BR47-YEJ100M4,BR47-YEJ112M4,BR47-YEJ132M4,BR47-YEJ63M4,BR47-YEJ71M4,BR47-YEJ80M4,BR47-YEJ90M4,BR47-YS100M4,BR47-YS112M4,BR47-YS132M4,BR47-YS63M4,BR47-YS71M4,BR47-YS80M4,BR47-YS90M4,BR47-YVP100M4,BR47-YVP112M4,BR47-YVP132M4,BR47-YVP63M4,BR47-YVP71M4,BR47-YVP80M4,BR47-YVP90M4,BR47-YVPEJ100M4,BR47-YVPEJ112M4,BR47-YVPEJ132M4,BR47-YVPEJ63M4,BR47-YVPEJ71M4,BR47-YVPEJ80M4,BR47-YVPEJ90M4,GR47-Y0.12KW,GR47-Y0.18KW,GR47-Y0.25KW,GR47-Y0.37KW,GR47-Y0.55KW,GR47-Y0.75KW,GR47-Y1.1KW,GR47-Y1.5KW,GR47-Y100M4,GR47-Y112M4,GR47-Y132M4,GR47-Y2.2KW,GR47-Y3KW,GR47-Y4KW,GR47-Y5.5KW,GR47-Y63M4,GR47-Y7.5KW,GR47-Y71M4,GR47-Y80M4,GR47-Y90M4,GR47-YEJ100M4,GR47-YEJ112M4,GR47-YEJ132M4,GR47-YEJ63M4,GR47-YEJ71M4,GR47-YEJ80M4,GR47-YEJ90M4,GR47-YS100M4,GR47-YS112M4,GR47-YS132M4,GR47-YS63M4,GR47-YS71M4,GR47-YS80M4,GR47-YS90M4,GR47-YVP100M4,GR47-YVP112M4,GR47-YVP132M4,GR47-YVP63M4,GR47-YVP71M4,GR47-YVP80M4,GR47-YVP90M4,GR47-YVPEJ100M4,GR47-YVPEJ112M4,GR47-YVPEJ132M4,GR47-YVPEJ63M4,GR47-YVPEJ71M4,GR47-YVPEJ80M4,GR47-YVPEJ90M4,RC47-Y0.12KW,RC47-Y0.18KW,RC47-Y0.25KW,RC47-Y0.37KW,RC47-Y0.55KW,RC47-Y0.75KW,RC47-Y1.1KW,RC47-Y1.5KW,RC47-Y100M4,RC47-Y112M4,RC47-Y132M4,RC47-Y2.2KW,RC47-Y3KW,RC47-Y4KW,RC47-Y5.5KW,RC47-Y63M4,RC47-Y7.5KW,RC47-Y71M4,RC47-Y80M4,RC47-Y90M4,RC47-YEJ100M4,RC47-YEJ112M4,RC47-YEJ132M4,RC47-YEJ63M4,RC47-YEJ71M4,RC47-YEJ80M4,RC47-YEJ90M4,RC47-YS100M4,RC47-YS112M4,RC47-YS132M4,RC47-YS63M4,RC47-YS71M4,RC47-YS80M4,RC47-YS90M4,RC47-YVP100M4,RC47-YVP112M4,RC47-YVP132M4,RC47-YVP63M4,RC47-YVP71M4,RC47-YVP80M4,RC47-YVP90M4,RC47-YVPEJ100M4,RC47-YVPEJ112M4,RC47-YVPEJ132M4,RC47-YVPEJ63M4,RC47-YVPEJ71M4,RC47-YVPEJ80M4,RC47-YVPEJ90M4,MTD47-Y0.12KW,MTD47-Y0.18KW,MTD47-Y0.25KW,MTD47-Y0.37KW,MTD47-Y0.55KW,MTD47-Y0.75KW,MTD47-Y1.1KW,MTD47-Y1.5KW,MTD47-Y100M4,MTD47-Y112M4,MTD47-Y132M4,MTD47-Y2.2KW,MTD47-Y3KW,MTD47-Y4KW,MTD47-Y5.5KW,MTD47-Y63M4,MTD47-Y7.5KW,MTD47-Y71M4,MTD47-Y80M4,MTD47-Y90M4,MTD47-YEJ100M4,MTD47-YEJ112M4,MTD47-YEJ132M4,MTD47-YEJ63M4,MTD47-YEJ71M4,MTD47-YEJ80M4,MTD47-YEJ90M4,MTD47-YS100M4,MTD47-YS112M4,MTD47-YS132M4,MTD47-YS63M4,MTD47-YS71M4,MTD47-YS80M4,MTD47-YS90M4,MTD47-YVP100M4,MTD47-YVP112M4,MTD47-YVP132M4,MTD47-YVP63M4,MTD47-YVP71M4,MTD47-YVP80M4,MTD47-YVP90M4,MTD47-YVPEJ100M4,MTD47-YVPEJ112M4,MTD47-YVPEJ132M4,MTD47-YVPEJ63M4,MTD47-YVPEJ71M4,MTD47-YVPEJ80M4,MTD47-YVPEJ90M4,WXR47-WSS0.12KW,WXR47-WSS0.18KW,WXR47-WSS0.25KW,WXR47-WSS0.37KW,WXR47-WSS0.55KW,WXR47-WSS0.75KW,WXR47-WSS1.1KW,WXR47-WSS1.5KW,WXR47-WSS100M4,WXR47-WSS112M4,WXR47-WSS132M4,WXR47-WSS2.2KW,WXR47-WSS3KW,WXR47-WSS4KW,WXR47-WSS5.5KW,WXR47-WSS63M4,WXR47-WSS7.5KW,WXR47-WSS71M4,WXR47-WSS80M4,WXR47-WSS90M4,WXR47-WSSB100M4,WXR47-WSSB112M4,WXR47-WSSB132M4,WXR47-WSSB63M4,WXR47-WSSB71M4,WXR47-WSSB80M4,WXR47-WSSB90M4,WXR47-WSSVP100M4,WXR47-WSSVP112M4,WXR47-WSSVP132M4,WXR47-WSSVP63M4,WXR47-WSSVP71M4,WXR47-WSSVP80M4,WXR47-WSSVP90M4,WXR47-WSSVPB100M4,WXR47-WSSVPB112M4,WXR47-WSSVPB132M4,WXR47-WSSVPB63M4,WXR47-WSSVPB71M4,WXR47-WSSVPB80M4,WXR47-WSSVPB90M4。同軸減速機
